Sichuan Rare Magnetic

Bonded NdFeB magnets.Precision rotor assemblies.

Magnetic powder, magnets and rotor assemblies from one manufacturing partner.

Request a QuoteExplore Products

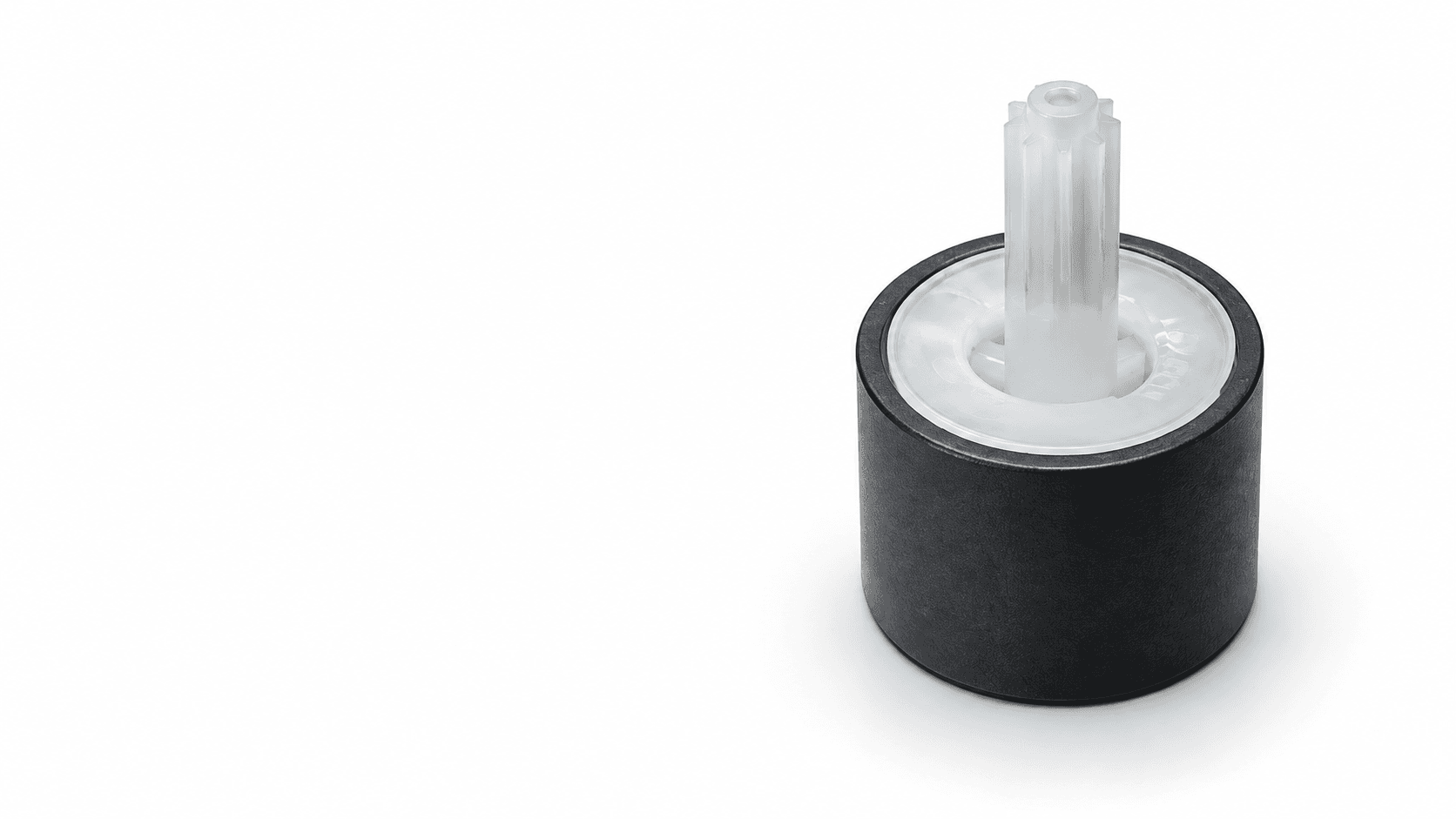

Studio visualization of a bonded NdFeB rotor assembly with a black magnet ring and translucent gear shaft
Product visualization

Rotor assemblies

Built around your motor.

Bonded NdFeB magnet rings integrated with molded gear shafts, configured to your drawing and magnetic requirements.

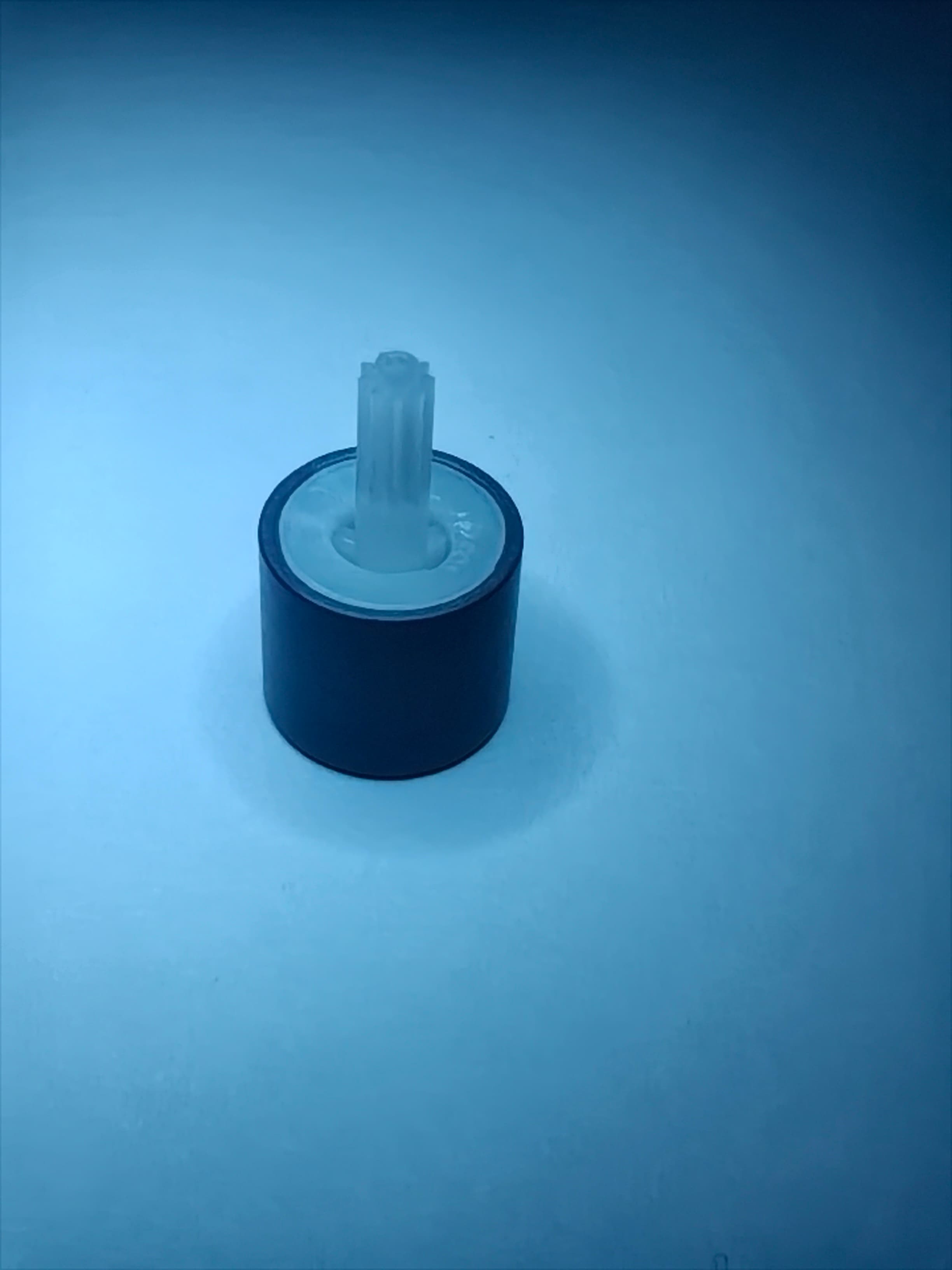

10.2 rotor assembly photographed from the front, showing the black magnet ring and gear shaft

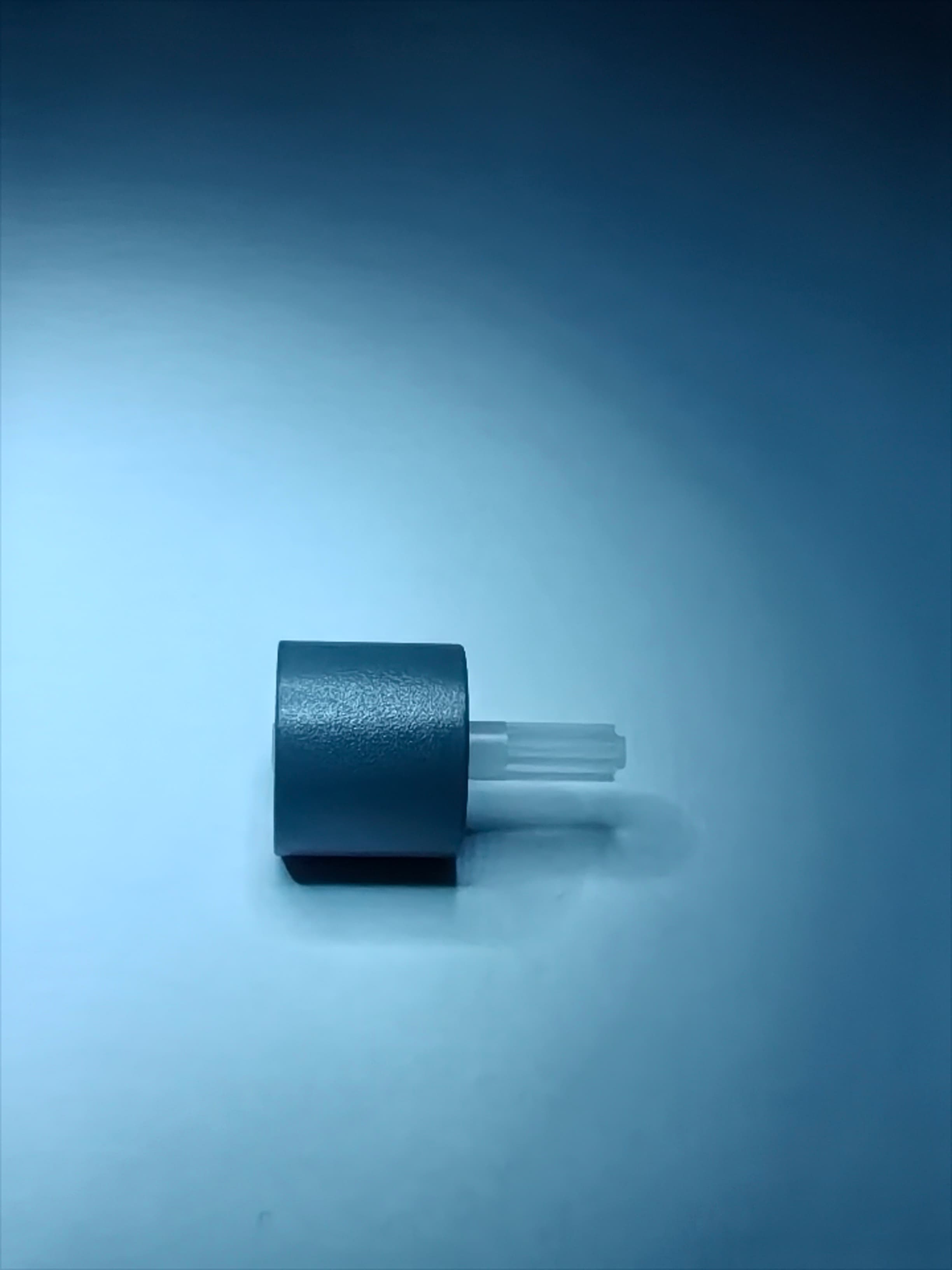

10.2 rotor assembly photographed from the side

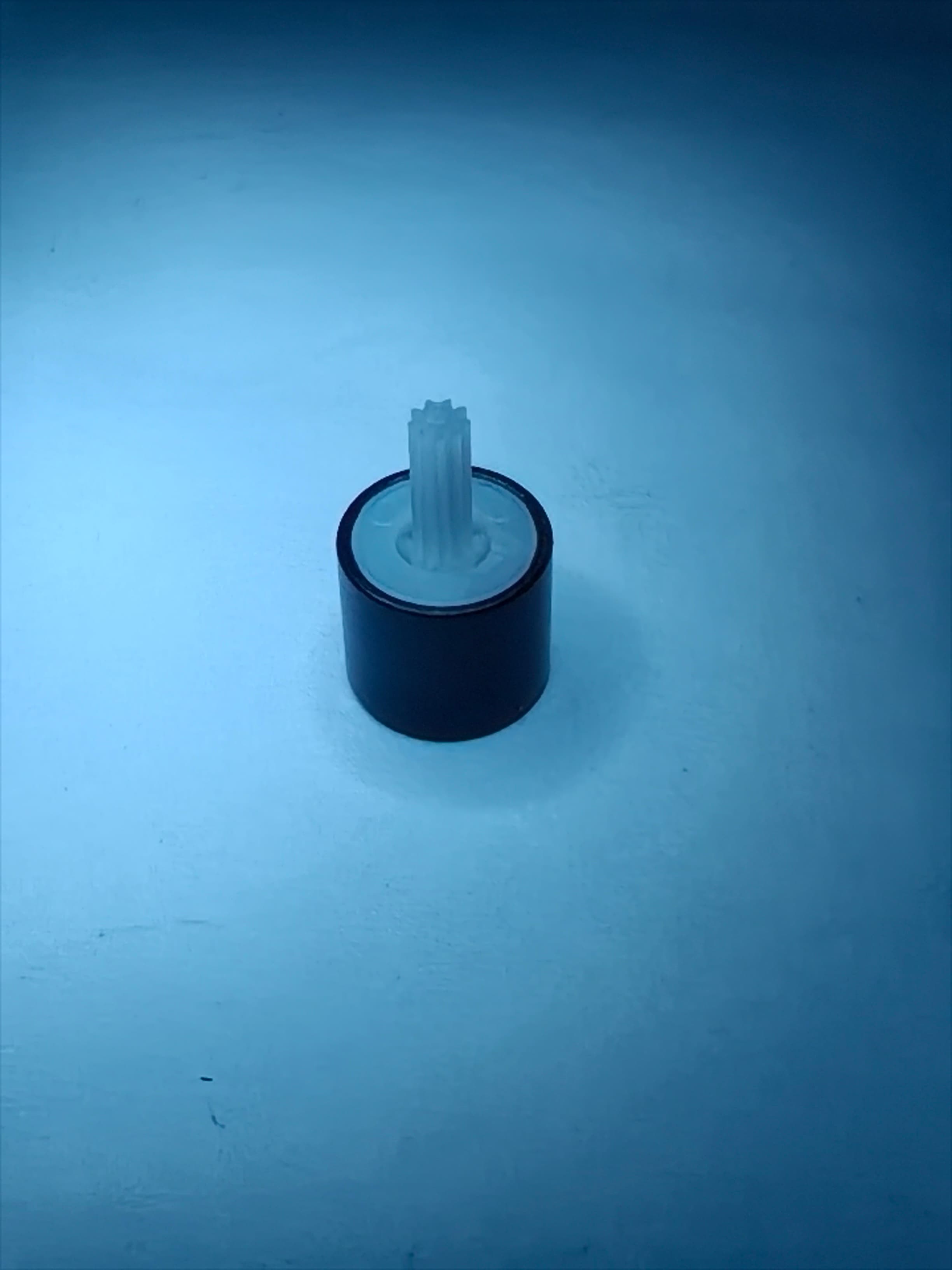

10.2 rotor assembly photographed from above, showing the shaft bore and gear profile

10.2 Rotor Assembly

A compact rotor with a 10.15–10.20 mm outside diameter, offered in six surface-field grades from Z4 to Z9.

View specificationsRequest a Quote
Gear design
Full-tooth or half-tooth
Color
  • Black
  • Dark gray
  • Light gray
Dimensions
Overall height and gear dimensions to customer requirements
Surface field
Linearly adjustable capability from 1200 to 2000 GModel-specific ranges are defined per grade.

Integrated manufacturing

From magnetic powder to finished rotor.

Every stage happens under one roof in Mianyang — giving engineering teams a single point of control over material, magnet and assembly.

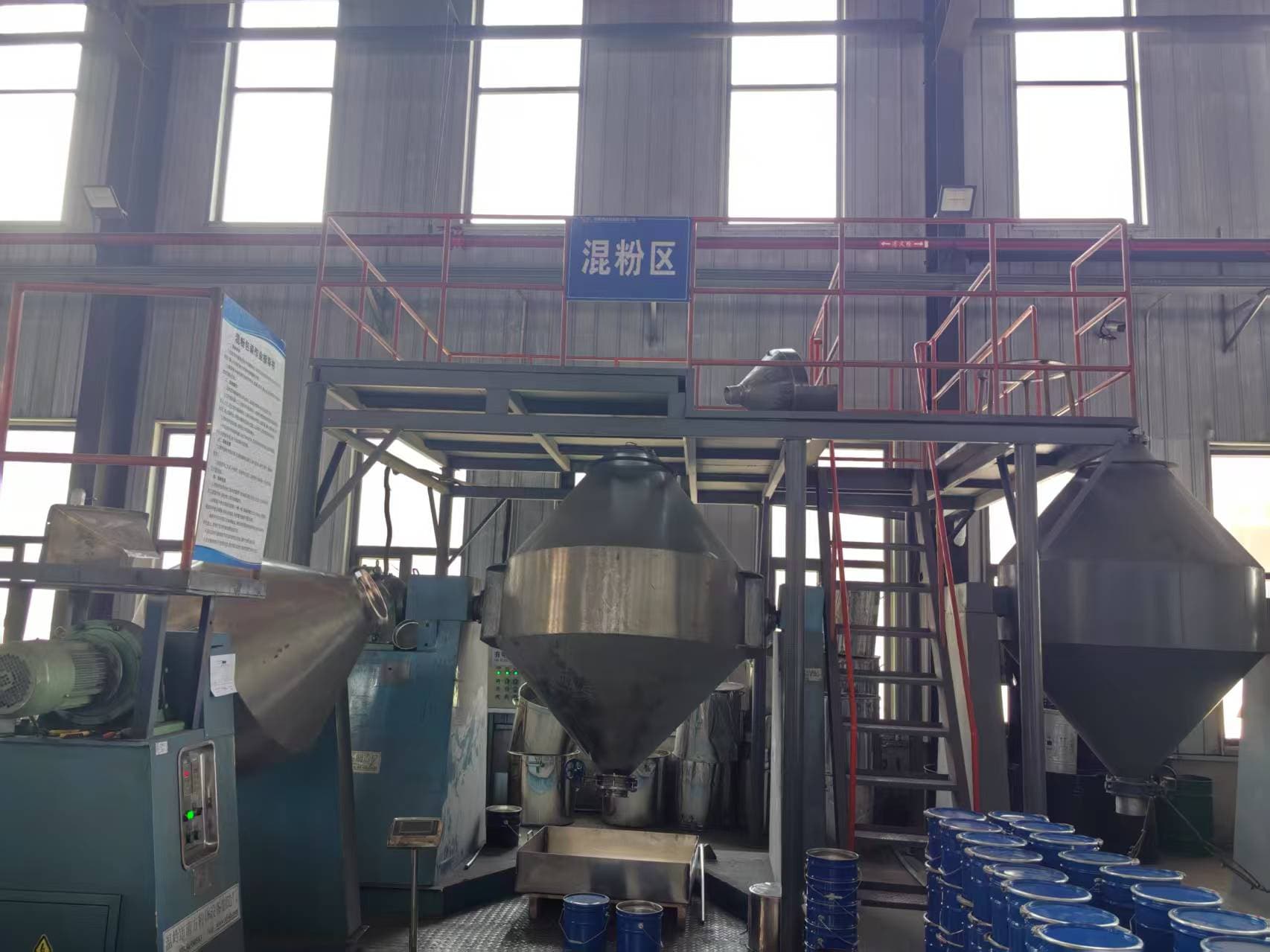

Mixing equipment combining magnetic powder and binder

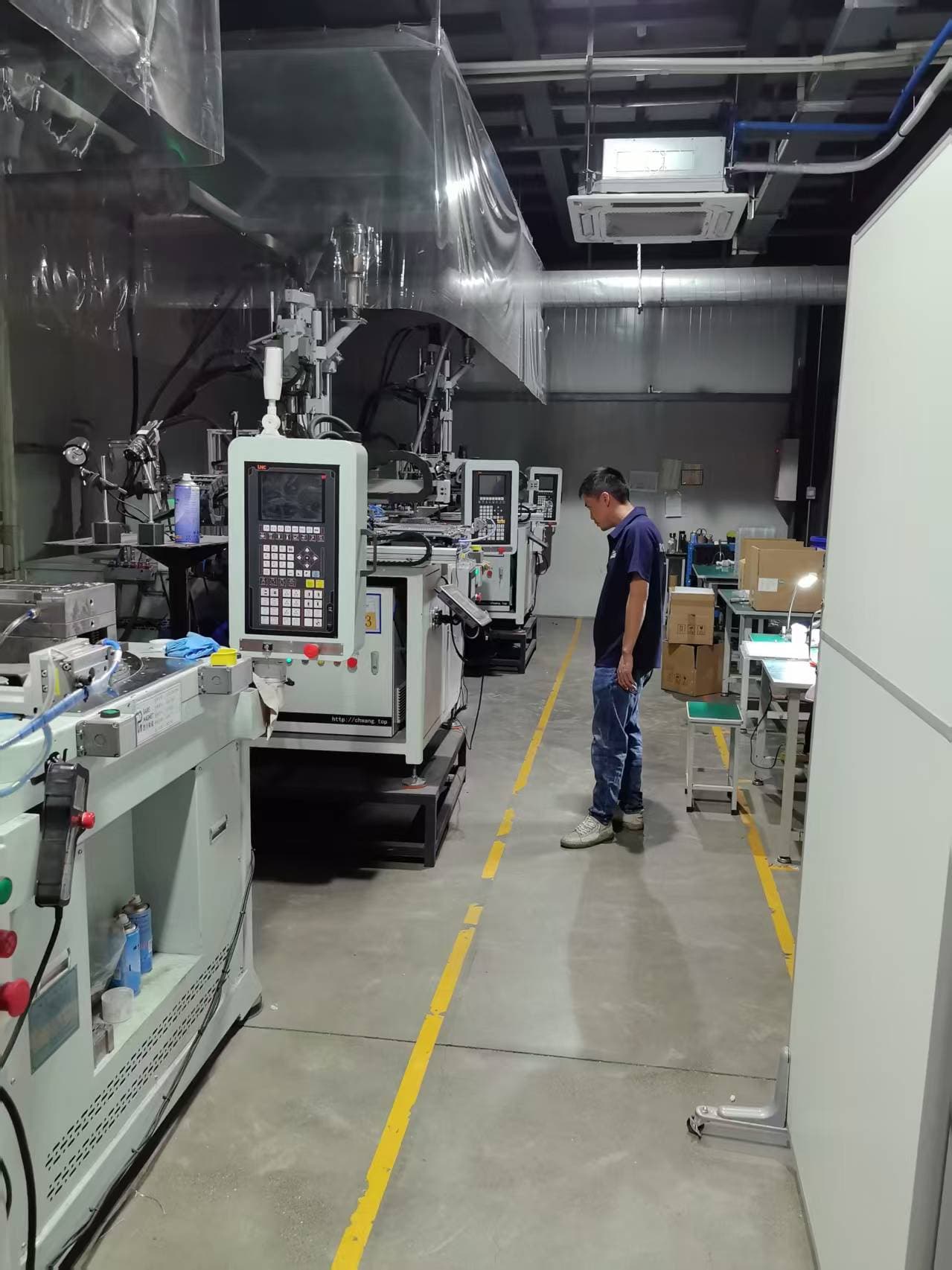

Injection molding line used for rotor assembly production
  1. 01

    Magnetic powder

    Melt-spun bonded NdFeB powder, produced in-house by a team focused on powder since 2009.

  2. 02

    Bonded magnets

    Powder and binder are mixed, compression molded, cured, surface treated and magnetized.

  3. 03

    Rotor assemblies

    Finished magnets are injection molded into gear-shaft rotor assemblies, then fully inspected.

See the full process

Production capacity

10Mpieces per month, today.

Phase II facilities are ready for use. Capacity can expand to 15 million pieces per month according to market demand.

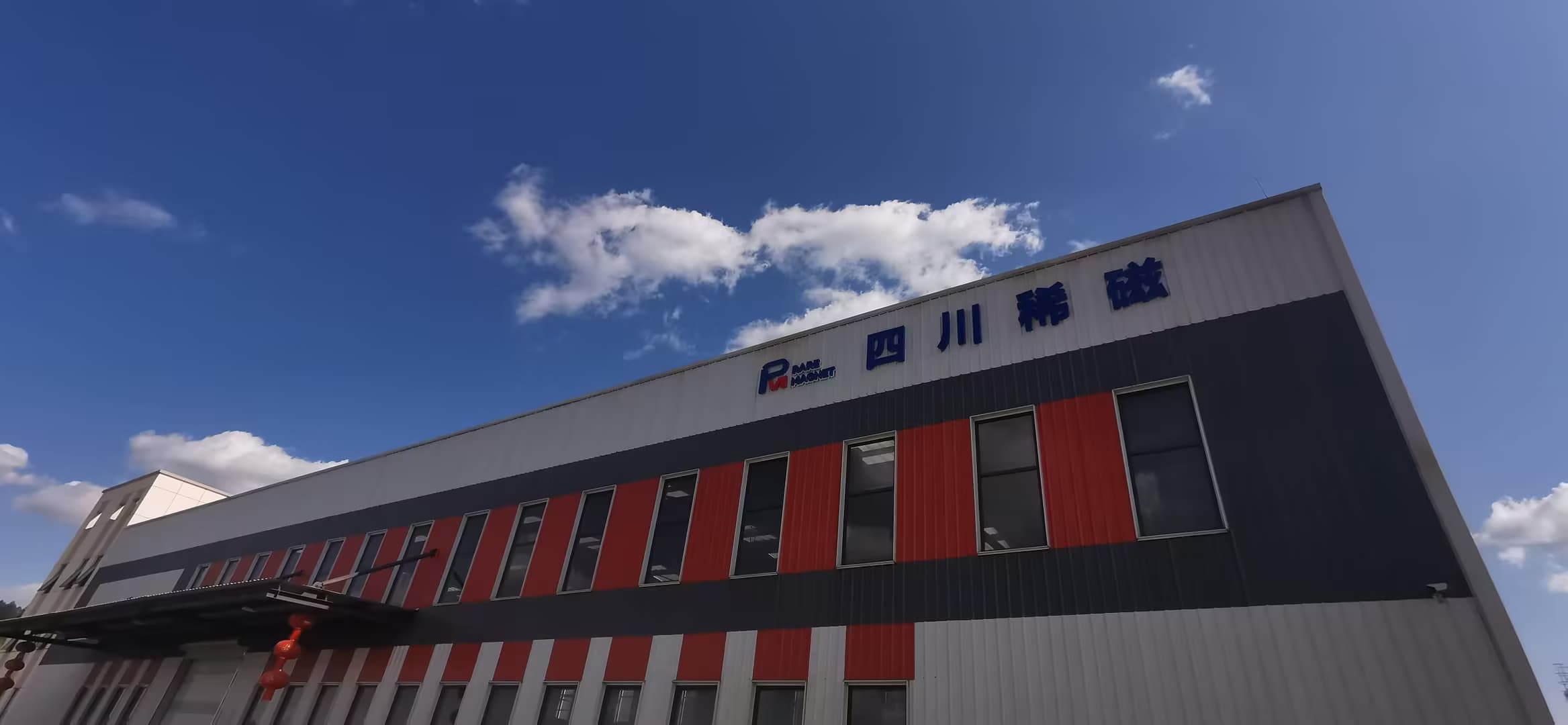

Exterior of the Sichuan Rare Magnetic manufacturing facility in Mianyang, Sichuan
Team focused on bonded NdFeB powder production since
2009
Expansion into magnet and assembly manufacturing
Dec 2021
Manufacturing in Sichuan, China
Mianyang

Quality

ISO 9001:2015 certified.

Certified in June 2024. Powder, magnets and assemblies are verified with in-house equipment for magnetic performance, dimensions, strength and surface waveform.

Explore testing capabilities
ISO 9001:2015 quality management system certificate issued to Sichuan Rare Magnetic

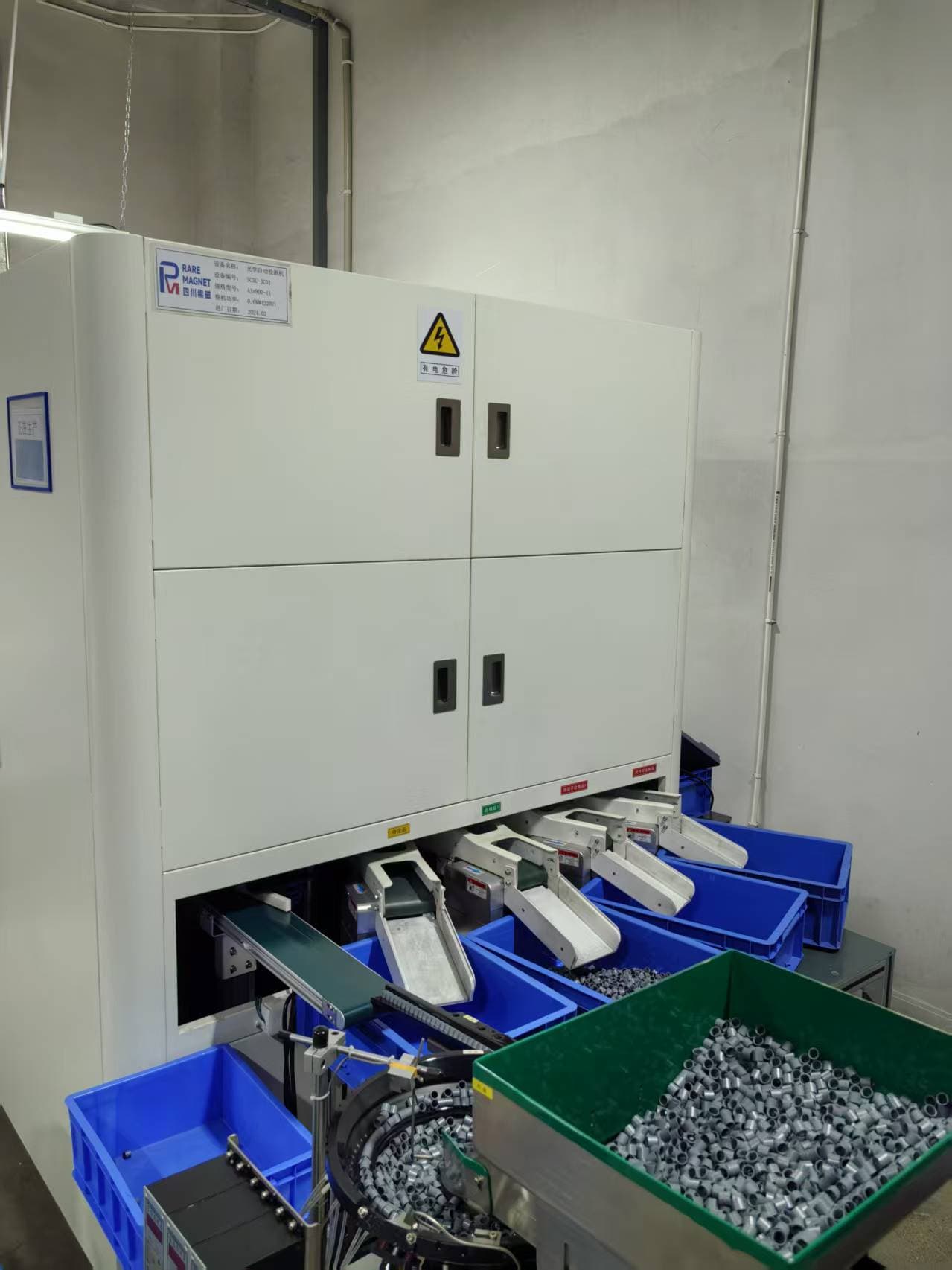

Automated inspection equipment screening appearance, dimensions and surface defects
Automated appearance, dimension and surface defect inspection

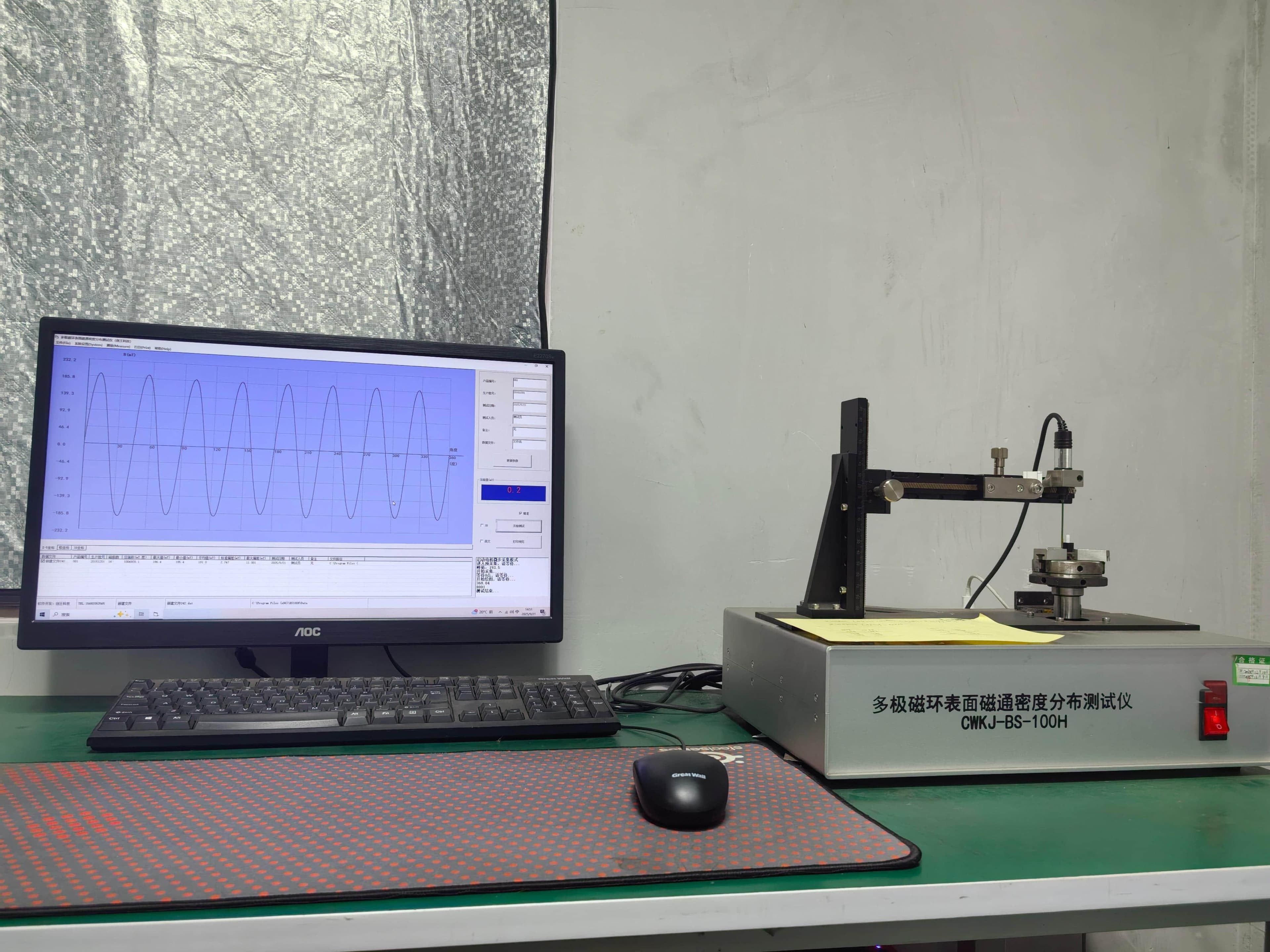

Surface magnetic flux density distribution and waveform testing equipment
Surface magnetic flux density distribution and waveform testing

Applications

Small motors. Everyday precision.

Examples of applications for our rotor assemblies.

  • 01Security camerasCompact motors for camera positioning.
  • 02Smart toiletsSmall actuators in sanitary appliances.
  • 03Air-conditioning airflow controlVertical and horizontal airflow control motors.
  • 04Stage lightingMotion and positioning motors for lighting fixtures.

Send us your drawing.

Share your dimensions, magnetic requirements and estimated volumes. Our engineering team will review your project.

Request a QuoteView specifications
